Add custom texts#

Follow these instructions to add custom text to your solution.

No-code customization#

Customize the setup page#

You can add custom text below the Problem Setup page’s first header. To do so, create a text file in the following path:

src\ansys\solutions\<solution-name>\ui\assets\texts\custom_intro.md

For example, if you create custom_intro.md and add the following lines:

custom_intro.md#

This is a custom line of text.

This is a second custom line of text.

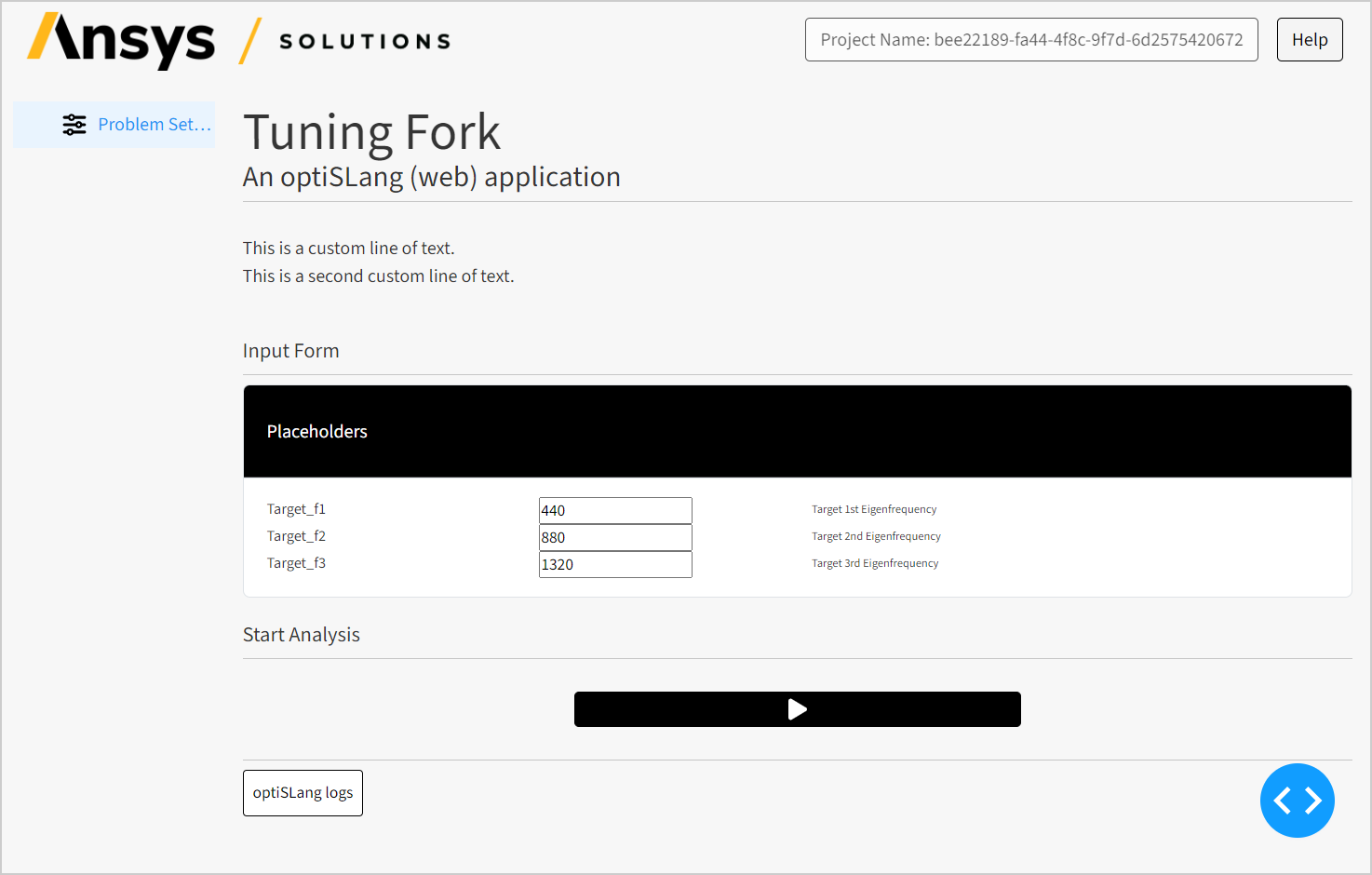

The Problem Setup page is then displayed as follows:

Customize other pages#

Customizing other pages in the solution requires some familiarity with Python. For more information, review the following sections.

Low-code customization#

Customize the setup page#

If you are familiar with Python, look at the code in the following file:

src\ansys\solutions\<solution-name>\ui\pages\problem_setup_page.py

The page is defined as a div component containing a list of inner dash components. The Markdown text is read from the given file and inserted as a nested div in that list. (If the file doesn’t exist, the element is just empty.)

problem_setup_page.py#

return html.Div(
    [
        # Header
        html.H1(
            problem_setup_slice.app_metadata["title"],
            style={"fontSize": "45px", "fontWeight": "normal", "lineHeight": "1.2"},
        ),
        html.P(
            problem_setup_slice.app_metadata["description"],
            style={"fontSize": "25px", "fontWeight": "normal"},
        ),
        html.Hr(className="my-2"),
        html.Br(),
        # This is where you can put your custom text
        get_custom_text("custom_intro.md"),
        ...
    ]

To create your own text blocks, create files in ui\assets\texts and load them inside the list using the get_custom_text(...) function, in the same way it’s done for custom_intro.md, as shown here:

problem_setup_page.py#

return html.Div(
    [
        ...,
        get_custom_text("your_new_file.md"),
        ...
    ]

Customize the result files view#

You can use a similar approach to add custom text to the Results Files tab. For example, look at the following file:

src\ansys\solutions\<solution-name>\ui\views\result_files_view.py

This view is also defined in the form of a div, as shown here:

result_files_view.py#

layout = html.Div(
    [
        extra_message_selected_file,
        buttons,
        result_files_table,
        table_loading_message,
        spinner,
        hidden_divs,
        checkbox_states,
    ]
)

To add your own custom text:

Create a file in ui\assets\texts\.

For example, say you create ui\assets\texts\results_text.md with the following content:
results_text.md#
```
This is more custom text.

Here is a more detailed explanation about the result files.
```

Load it by calling get_custom_text(..).

Following the example, get_custom_text("results_text.md"):

result_files_view.py#

custom_text = get_custom_text("results_text.md")

layout = html.Div(
    [
        extra_message_selected_file,
        custom_text,
        buttons,
        result_files_table,
        table_loading_message,
        spinner,
        hidden_divs,
        checkbox_states,
    ]
)

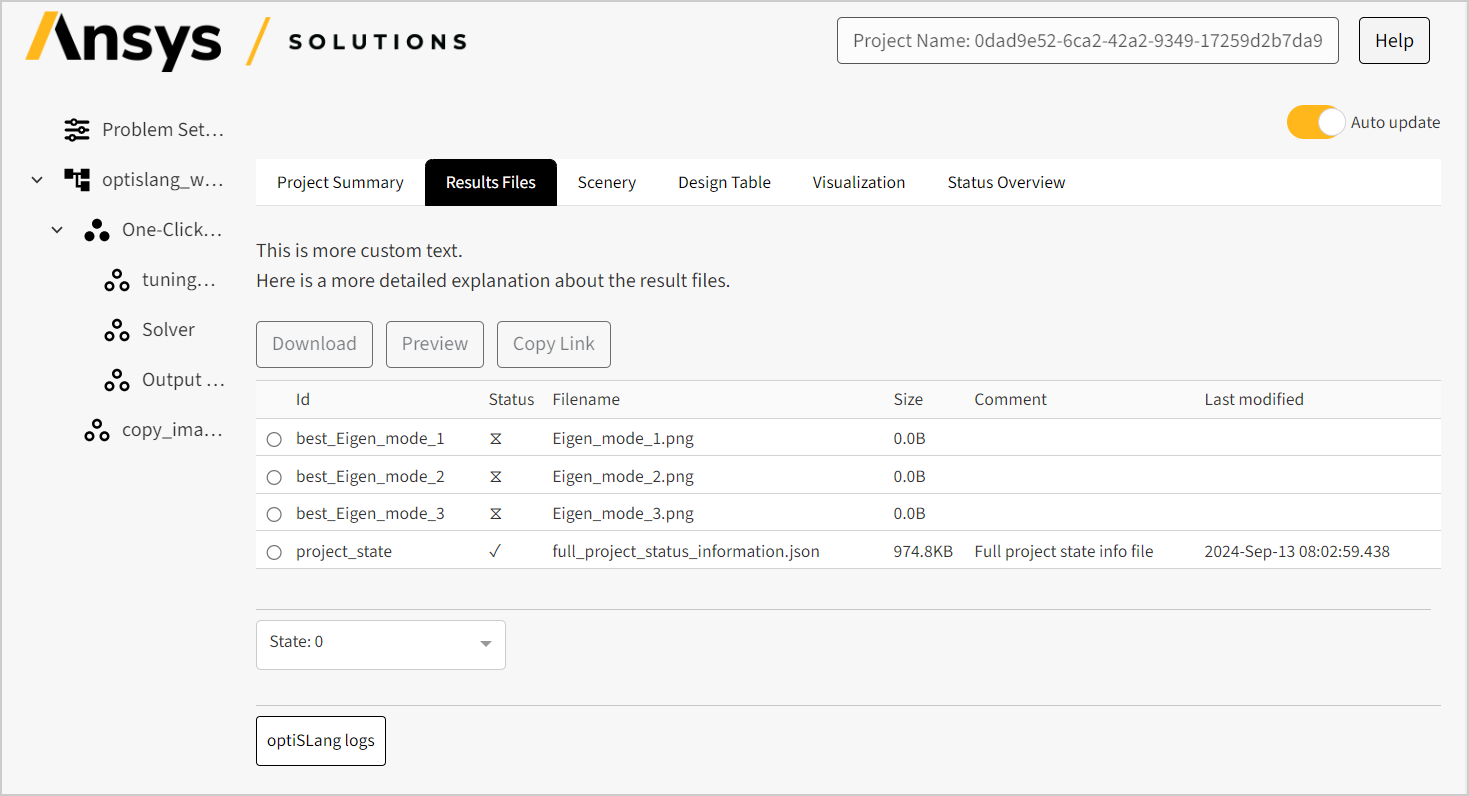

The text is now visible in the view, as shown here:

Customize other pages#

To make these same modifications to any other page, edit the corresponding .py file in the ui\pages or ui\views folders.

If you want to use get_custom_text(..) outside of the Problem Setup page or the Results Files view, you need to import it from the <solution_name>.ui.utils.texts submodule.

Full-code customization#

Customize the setup page#

If you are familiar with Dash, HTML, and CSS, you can insert Dash elements—such as paragraphs (html.P("Paragraph text")) and breaks (html.Br())—into this list, as needed. For example:

problem_setup_page.py#

return html.Div(
    [
        ...,
        html.P("This is a custom line of text."),
        html.Br(),
        html.P("This is a second custom line of text."),
        ...
    ]

This yields the same result as the no-code example with the custom_intro.md text file. Use whichever method is more convenient.

Customize the result files view#

To use this same approach for the result files view, define your own Dash element:

result_files_view.py#

custom_text = html.Div(
    [
        ...,
        html.P("This is a custom text."),
        html.Br(),
        html.P("Here is a more detailed explanation about the result files."),
        ...
    ]
)

layout = html.Div(
    [
        ...,
        custom_text,
        ...
    ]
)

This yields the same result as the low-code Results view example with the results_text.md text file. Use whichever method is more convenient.

Customize other pages#

Similarly, you can directly modify the Dash components for any page and view. This does not require you to import any helper function.
